Building an autograd engine

Why this matters at staff level. "How does PyTorch's autograd actually work?" is a standard ML-depth question, and "build a tiny autograd" is a favourite take-home and live-coding task for infra-leaning roles. The strong signal is a working engine with tensor (not scalar) values, correct broadcasting in the backward pass, a topological sort, and the ability to say precisely how PyTorch (Function, ctx, dynamic graph, requires_grad, no_grad, in-place checks, hooks) and JAX (functional grad, jit, vmap) differ from what you built and why.

TL;DR: the interview card

  • A Tensor holds data, grad, the parent tensors _prev and a closure _backward that adds this node's VJP into the parents' grad.
  • backward(): topological sort of the DAG from the root; seed root.grad = 1; call each node's _backward in reverse order. Gradients accumulate (+=) because a tensor can feed several ops.
  • Every op is: compute output data; capture inputs in a closure; define _backward using the local derivative; return the new node.
  • Broadcasting forward \(\Rightarrow\) unbroadcast backward: sum over prepended axes, then sum with keepdims over axes that were size 1.
  • Matmul: \(\bar A = \bar C B^\top\), \(\bar B = A^\top \bar C\) (batched via swapaxes(-1,-2) + unbroadcast).
  • Reductions: sum broadcasts the upstream gradient back; mean is sum times \(1/n\).
  • PyTorch differences: C++ engine, Function.apply with a ctx that saves tensors, a dynamic graph rebuilt per iteration, requires_grad propagation, .detach()/no_grad/inference_mode, version counters for in-place safety, retain_graph, tensor and module hooks, gradients only on leaves by default.
  • JAX differences: no mutable .grad; grad(f) is a function transformation on pure functions; jit traces to XLA; vmap vectorises; jvp gives forward mode; state is threaded explicitly.
  • Tested against torch.autograd on random graphs to \(10^{-9}\): tests/test_nn_autograd.py.

1. Intuition first

Chapter 2 wrote a backward per layer and a hand-ordered loop. An autograd engine pushes that one level down: a backward per primitive op (add, mul, matmul, exp, …) and an automatic ordering. The user writes only the forward expression. Evaluating it builds the graph as a side effect.

Take \(L = \sum \big(\mathrm{relu}(XW + b)\big)\). Evaluating this with our Tensor produces four nodes in order: t1 = X @ W, t2 = t1 + b, t3 = t2.relu(), L = t3.sum(). Each node remembers its parents:

flowchart LR
  X((X)) --> M[t1 = X @ W]
  W((W)) --> M
  M --> A[t2 = t1 + b]
  b((b)) --> A
  A --> R[t3 = relu t2]
  R --> S[L = sum t3]

L.backward() sets \(\bar L = 1\) and visits S, R, A, M in that order. S's closure broadcasts \(\bar L\) to t3's shape; R's multiplies by the mask; A's passes \(\bar{t_2}\) to t1 unchanged and sums it over the batch into b.grad (the unbroadcast); M's computes \(\bar X = \bar{t_1} W^\top\) and \(\bar W = X^\top \bar{t_1}\). The parameter gradients appear in W.grad and b.grad without anyone having written a "Linear.backward".

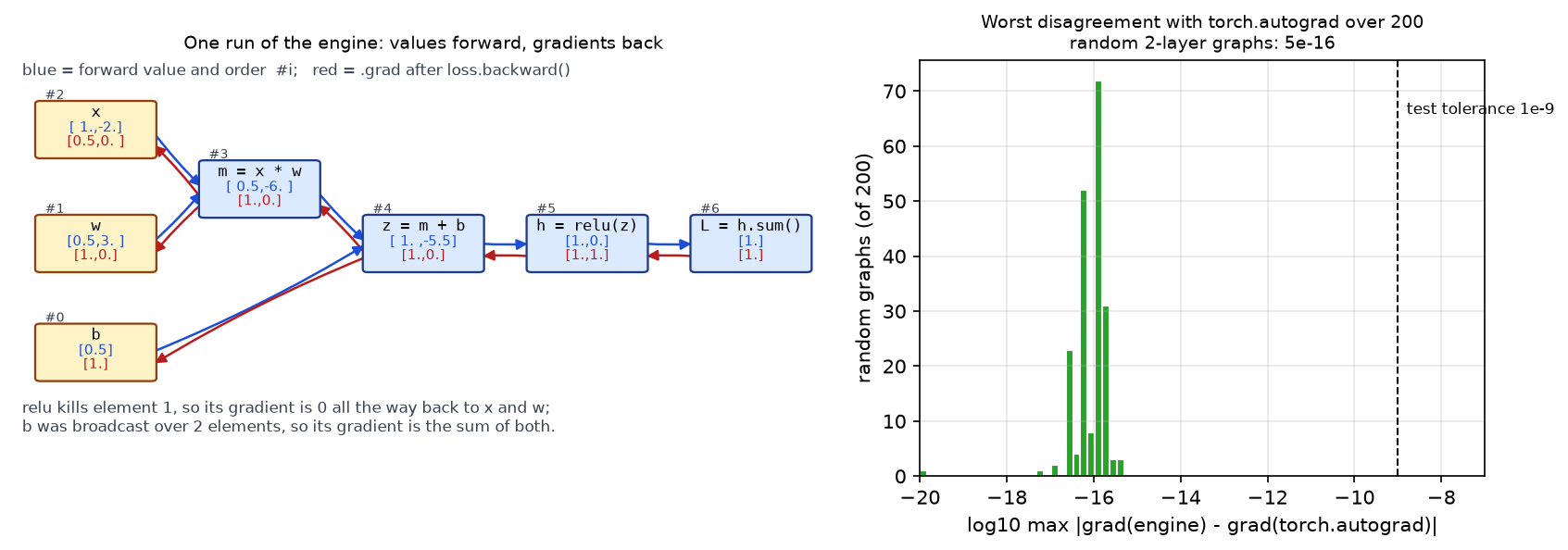

A real run of the engine, and its agreement with torch

Left: the graph of L = (x*w + b).relu().sum() after one loss.backward(), with every number taken from a real run of mlbook.nn.autograd. Blue is the forward value and the node's position #i in the topological order; red is .grad. Element 1 is negative before the ReLU, so its gradient is zero back through w and x; b was broadcast over both elements, so its gradient is the sum of the two. Right: the largest disagreement with torch.autograd over 200 random two-layer graphs is 5e-16, ten million times tighter than the 1e-9 the tests demand. Reproduce with python figures/part03_autograd_modes.py.

Why closures? The backward of an op needs values from its forward (for mul, the other operand; for exp, the output; for relu, the input). A closure captures those by reference, which is both the simplest implementation and exactly what PyTorch's ctx.save_for_backward formalises.

Why a topological sort? A node's _backward reads out.grad, which must be complete, every downstream consumer must have added its contribution first. Reverse topological order guarantees that. Executing in "creation order reversed" is only correct if creation order was itself topological, which it is for eager execution but not in general (e.g. graphs assembled out of order), so the engine sorts.

2. The math

An engine is correct if, for each primitive \(y = f(x_1, \dots, x_m)\), its closure implements the VJPs \(\bar x_i \mathrel{+}= \bar y\cdot \partial y/\partial x_i\) with correct shapes. The ones this engine implements:

Op Forward VJP(s)
add \(y = a + b\) \(\bar a \mathrel{+}= \mathrm{unbc}(\bar y, a)\), \(\bar b \mathrel{+}= \mathrm{unbc}(\bar y, b)\)
mul \(y = a\odot b\) \(\bar a \mathrel{+}= \mathrm{unbc}(\bar y\odot b, a)\), \(\bar b \mathrel{+}= \mathrm{unbc}(\bar y\odot a, b)\)
pow (scalar \(c\)) \(y = a^c\) \(\bar a \mathrel{+}= c\,a^{c-1}\odot\bar y\)
matmul \(Y = AB\) \(\bar A \mathrel{+}= \mathrm{unbc}(\bar Y B^{\top}, A)\), \(\bar B \mathrel{+}= \mathrm{unbc}(A^{\top}\bar Y, B)\)
sum over axes \(y = \sum_{\text{axes}} a\) \(\bar a \mathrel{+}= \mathrm{broadcast}(\mathrm{expand}(\bar y), a)\)
exp / log \(e^a\), \(\log a\) \(\bar a \mathrel{+}= y\odot\bar y\); \(\bar a \mathrel{+}= \bar y / a\)
relu / sigmoid / tanh \(\bar y\odot 1[a>0]\); \(\bar y\odot s(1-s)\); \(\bar y\odot(1-t^2)\)
log_softmax (axis) \(\ell = a - \mathrm{lse}(a)\) \(\bar a \mathrel{+}= \bar\ell - p\odot\sum_{\text{axis}}\bar\ell\)
softmax (axis) \(p\) \(\bar a \mathrel{+}= p\odot(\bar p - \sum_{\text{axis}} \bar p\odot p)\)
reshape / transpose reshape back; transpose by the inverse permutation

Two of these deserve a derivation.

unbroadcast. If \(a\) has shape \(s\) and was broadcast to \(s'\) before an elementwise op, then in the forward pass each element of \(a\) was copied to a set \(S\) of positions in the \(s'\)-shaped intermediate. The chain rule sums over \(S\) (chapter 2, §2.5). Concretely: NumPy broadcasting (i) prepends axes of size 1 on the left until ranks match, then (ii) stretches any size-1 axis. Undoing (i) is summing over the leading extra axes; undoing (ii) is summing with keepdims=True over each axis that is 1 in \(s\) but not in \(s'\).

log_softmax VJP. \(\ell_k = a_k - \log\sum_j e^{a_j}\), so \(\partial \ell_k/\partial a_i = 1[i=k] - p_i\). For upstream \(\bar\ell\): \(\bar a_i = \sum_k \bar\ell_k(1[i=k] - p_i) = \bar\ell_i - p_i\sum_k \bar\ell_k\). With \(\bar\ell = -\mathrm{onehot}(y)/N\) this evaluates to \((p - y)/N\), so two primitives are enough to express the fused cross-entropy gradient.

Correctness of the traversal. Let \(v_1, \dots, v_n\) be a topological order of the DAG with \(v_n\) the root. Claim: after processing \(v_n, v_{n-1}, \dots, v_{k+1}\), the gradient stored on \(v_k\) equals \(\partial L/\partial v_k\). Proof by induction: \(v_k\)'s gradient is \(\sum_{c \in \mathrm{children}(v_k)} \bar c\,\partial c/\partial v_k\), every child \(c\) has a larger index (topological order), so all of those closures have already run and each added exactly its term. This is why += is mandatory and why each node's closure must run exactly once.

3. Implementation

src/mlbook/nn/autograd.py, about 300 lines. The skeleton:

class Tensor:
    def __init__(self, data, requires_grad=False, _children=(), _op=""):
        self.data = np.asarray(data, dtype=np.float64)   # any shape
        self.grad = np.zeros_like(self.data)             # same shape as data
        self.requires_grad = requires_grad
        self._prev = tuple(_children)                    # parents in the DAG
        self._op = _op
        self._backward = lambda: None                    # leaf: nothing to propagate

    def backward(self):
        assert self.data.size == 1, "backward() needs a scalar root; call .sum() first"
        order = _topological_order(self)
        self.grad = np.ones_like(self.data)              # dL/dL = 1
        for node in reversed(order):                     # children before parents
            node._backward()

The root must be a scalar because we seed with \(\bar L = 1\); for a non-scalar output you would seed with an explicit cotangent (PyTorch's backward(gradient=...)).

def unbroadcast(grad, shape):
    while grad.ndim > len(shape):                        # axes that broadcasting prepended
        grad = grad.sum(axis=0)
    for axis, size in enumerate(shape):                  # axes that were 1 and got stretched
        if size == 1 and grad.shape[axis] != 1:
            grad = grad.sum(axis=axis, keepdims=True)
    return grad                                          # shape == shape

unbroadcast is the single most important function in the file; it is what lets x + b with b of shape (d,) produce the right b.grad of shape (d,).

    def __add__(self, other):
        other = _as_tensor(other)
        out = Tensor(self.data + other.data, _children=(self, other), _op="add")   # broadcast shape
        def _backward():
            self.grad += unbroadcast(out.grad, self.shape)
            other.grad += unbroadcast(out.grad, other.shape)
        out._backward = _backward
        return out

    def __mul__(self, other):
        other = _as_tensor(other)
        out = Tensor(self.data * other.data, _children=(self, other), _op="mul")   # broadcast shape
        def _backward():
            self.grad += unbroadcast(other.data * out.grad, self.shape)
            other.grad += unbroadcast(self.data * out.grad, other.shape)
        out._backward = _backward
        return out

Every op follows this template: compute, build a node with parents, define the closure, attach, return. sub, neg and truediv are composed from add, mul and pow so they need no closures of their own, a small example of the "few primitives, many derived ops" design that real frameworks use.

    def __matmul__(self, other):
        out = Tensor(self.data @ other.data, _children=(self, other), _op="matmul")   # (..., n, p)
        def _backward():
            bt = np.swapaxes(other.data, -1, -2)                       # (..., p, m)
            at = np.swapaxes(self.data, -1, -2)                        # (..., m, n)
            self.grad += unbroadcast(out.grad @ bt, self.shape)        # (..., n, m)
            other.grad += unbroadcast(at @ out.grad, other.shape)      # (..., m, p)
        out._backward = _backward
        return out

swapaxes(-1, -2) is the batched transpose; unbroadcast handles a weight that was shared across a batch of matmuls (e.g. (4, 2, 3) @ (3, 5)), summing its gradient over the batch, the same bias rule again.

    def sum(self, axis=None, keepdims=False):
        out = Tensor(self.data.sum(axis=axis, keepdims=keepdims), _children=(self,), _op="sum")
        def _backward():
            g = out.grad
            if not keepdims and axis is not None:
                g = np.expand_dims(g, axis)                  # restore reduced axes as size 1
            self.grad += np.broadcast_to(g, self.shape)      # copy gradient to every summed element
        out._backward = _backward
        return out

    def log_softmax(self, axis=-1):
        shifted = self.data - self.data.max(axis=axis, keepdims=True)                   # (..., K)
        logp = shifted - np.log(np.exp(shifted).sum(axis=axis, keepdims=True))          # (..., K)
        out = Tensor(logp, _children=(self,), _op="log_softmax")
        def _backward():
            p = np.exp(logp)                                                            # (..., K)
            self.grad += out.grad - p * out.grad.sum(axis=axis, keepdims=True)
        out._backward = _backward
        return out

sum's backward is broadcasting, the exact mirror of unbroadcast. log_softmax is a fused primitive rather than exp/sum/log composed, for the numerical reason in chapter 2: the composed version would compute log of an underflowed sum.

def _topological_order(root):
    """Iterative DFS post-order: every node appears after all of its inputs."""
    order, visited, stack = [], set(), [(root, False)]
    while stack:
        node, expanded = stack.pop()
        if expanded:
            order.append(node); continue
        if id(node) in visited:
            continue
        visited.add(id(node))
        stack.append((node, True))
        for child in node._prev:
            if id(child) not in visited:
                stack.append((child, False))
    return order

Iterative rather than recursive so a 1000-op graph does not hit Python's recursion limit. The post-order of a DFS is a topological order; reversing it gives the backward schedule.

def cross_entropy(logits, y):
    n, k = logits.shape
    onehot = np.zeros((n, k)); onehot[np.arange(n), y] = 1.0     # (N, K)
    logp = logits.log_softmax(axis=-1)                           # (N, K)
    return -(logp * Tensor(onehot)).sum() * (1.0 / n)            # scalar

With the engine, the loss is four ops and needs no backward of its own, the whole point.

How you'd test it. Build the same random graph in this engine and in PyTorch (float64), call backward() on both, and compare every leaf's gradient to atol=1e-9. tests/test_nn_autograd.py does this for: a two-layer MLP with cross-entropy; a deep elementwise chain with broadcasting; softmax / log-softmax / reshape / transpose / mean; batched matmul with a broadcast weight; plus two graph-structure checks (a tensor used twice accumulates; a diamond graph is ordered correctly) and one op-by-op parametrised sweep.

Full implementation: src/mlbook/nn/autograd.py
"""A tensor-valued reverse-mode autograd engine in NumPy (Part III, chapter 3).

Design, in one paragraph: a ``Tensor`` wraps a NumPy array, remembers which
``Tensor``s produced it (``_prev``) and a closure ``_backward`` that, given
``self.grad``, *accumulates* into the parents' ``.grad``. ``backward()`` sorts
the graph topologically, seeds ``grad = 1`` at the root and runs each closure
in reverse topological order - exactly what PyTorch's engine does, minus the
C++, the multithreading and the in-place bookkeeping.

Every op follows the same template::

    out = Tensor(f(a.data, b.data), (a, b))
    def _backward():
        a.grad += unbroadcast(local_a * out.grad, a.shape)
        b.grad += unbroadcast(local_b * out.grad, b.shape)
    out._backward = _backward
"""
from __future__ import annotations

from typing import Iterable

import numpy as np


def unbroadcast(grad: np.ndarray, shape: tuple[int, ...]) -> np.ndarray:
    """Sum ``grad`` down to ``shape`` (the inverse of NumPy broadcasting).

    Broadcasting *copies* a value across new/size-1 axes in the forward pass;
    the chain rule therefore *sums* the incoming gradient over those axes.
    """
    # 1. axes that broadcasting prepended (grad.ndim > len(shape))
    while grad.ndim > len(shape):
        grad = grad.sum(axis=0)  # drop one leading axis
    # 2. axes that were size 1 in the input and got stretched
    for axis, size in enumerate(shape):
        if size == 1 and grad.shape[axis] != 1:
            grad = grad.sum(axis=axis, keepdims=True)  # keep the 1
    return grad  # shape == shape


class Tensor:
    """Minimal differentiable tensor. ``data`` and ``grad`` are float64 ndarrays."""

    def __init__(self, data, requires_grad: bool = False, _children: Iterable["Tensor"] = (), _op: str = "") -> None:
        self.data = np.asarray(data, dtype=np.float64)  # any shape
        self.grad = np.zeros_like(self.data)  # same shape as data
        self.requires_grad = requires_grad
        self._prev: tuple[Tensor, ...] = tuple(_children)
        self._op = _op
        self._backward = lambda: None

    # ------------------------------------------------------------------ utils
    @property
    def shape(self) -> tuple[int, ...]:
        return self.data.shape

    def __repr__(self) -> str:
        return f"Tensor(shape={self.shape}, op={self._op!r})"

    def zero_grad(self) -> None:
        self.grad = np.zeros_like(self.data)

    def backward(self) -> None:
        """Reverse-mode AD from this (scalar) tensor to every ancestor."""
        assert self.data.size == 1, "backward() needs a scalar root; call .sum() first"
        order = _topological_order(self)
        self.grad = np.ones_like(self.data)  # dL/dL = 1
        for node in reversed(order):  # children before parents
            node._backward()

    # --------------------------------------------------------------- arithmetic
    def __add__(self, other) -> "Tensor":
        other = _as_tensor(other)
        out = Tensor(self.data + other.data, _children=(self, other), _op="add")  # broadcast shape

        def _backward() -> None:
            self.grad += unbroadcast(out.grad, self.shape)
            other.grad += unbroadcast(out.grad, other.shape)

        out._backward = _backward
        return out

    def __mul__(self, other) -> "Tensor":
        other = _as_tensor(other)
        out = Tensor(self.data * other.data, _children=(self, other), _op="mul")  # broadcast shape

        def _backward() -> None:
            self.grad += unbroadcast(other.data * out.grad, self.shape)
            other.grad += unbroadcast(self.data * out.grad, other.shape)

        out._backward = _backward
        return out

    def __pow__(self, exponent: float) -> "Tensor":
        assert isinstance(exponent, (int, float)), "only scalar exponents"
        out = Tensor(self.data ** exponent, _children=(self,), _op="pow")  # same shape

        def _backward() -> None:
            self.grad += exponent * self.data ** (exponent - 1) * out.grad

        out._backward = _backward
        return out

    def __neg__(self) -> "Tensor":
        return self * -1.0

    def __sub__(self, other) -> "Tensor":
        return self + (-_as_tensor(other))

    def __truediv__(self, other) -> "Tensor":
        return self * (_as_tensor(other) ** -1.0)

    def __radd__(self, other) -> "Tensor":
        return self + other

    def __rmul__(self, other) -> "Tensor":
        return self * other

    def __rsub__(self, other) -> "Tensor":
        return _as_tensor(other) - self

    def __matmul__(self, other: "Tensor") -> "Tensor":
        """``C = A @ B``; ``dA = dC @ B^T``, ``dB = A^T @ dC`` (batched via swapaxes)."""
        out = Tensor(self.data @ other.data, _children=(self, other), _op="matmul")  # (..., n, p)

        def _backward() -> None:
            bt = np.swapaxes(other.data, -1, -2)  # (..., p, m)
            at = np.swapaxes(self.data, -1, -2)  # (..., m, n)
            self.grad += unbroadcast(out.grad @ bt, self.shape)  # (..., n, m)
            other.grad += unbroadcast(at @ out.grad, other.shape)  # (..., m, p)

        out._backward = _backward
        return out

    # --------------------------------------------------------------- reductions
    def sum(self, axis: int | tuple[int, ...] | None = None, keepdims: bool = False) -> "Tensor":
        out = Tensor(self.data.sum(axis=axis, keepdims=keepdims), _children=(self,), _op="sum")

        def _backward() -> None:
            g = out.grad
            if not keepdims and axis is not None:
                g = np.expand_dims(g, axis)  # restore the reduced axes as size 1
            self.grad += np.broadcast_to(g, self.shape)  # copy the gradient to every summed element

        out._backward = _backward
        return out

    def mean(self, axis: int | tuple[int, ...] | None = None, keepdims: bool = False) -> "Tensor":
        count = self.data.size if axis is None else np.prod([self.shape[a] for a in np.atleast_1d(axis)])
        return self.sum(axis=axis, keepdims=keepdims) * (1.0 / float(count))

    # ------------------------------------------------------------ elementwise
    def exp(self) -> "Tensor":
        out = Tensor(np.exp(self.data), _children=(self,), _op="exp")  # same shape

        def _backward() -> None:
            self.grad += out.data * out.grad  # d exp = exp

        out._backward = _backward
        return out

    def log(self) -> "Tensor":
        out = Tensor(np.log(self.data), _children=(self,), _op="log")  # same shape

        def _backward() -> None:
            self.grad += out.grad / self.data

        out._backward = _backward
        return out

    def relu(self) -> "Tensor":
        out = Tensor(np.maximum(self.data, 0.0), _children=(self,), _op="relu")  # same shape

        def _backward() -> None:
            self.grad += (self.data > 0) * out.grad

        out._backward = _backward
        return out

    def sigmoid(self) -> "Tensor":
        s = 1.0 / (1.0 + np.exp(-self.data))  # same shape
        out = Tensor(s, _children=(self,), _op="sigmoid")

        def _backward() -> None:
            self.grad += s * (1.0 - s) * out.grad

        out._backward = _backward
        return out

    def tanh(self) -> "Tensor":
        t = np.tanh(self.data)  # same shape
        out = Tensor(t, _children=(self,), _op="tanh")

        def _backward() -> None:
            self.grad += (1.0 - t ** 2) * out.grad

        out._backward = _backward
        return out

    def log_softmax(self, axis: int = -1) -> "Tensor":
        """``log p = z - logsumexp(z)``; ``dz = dlogp - p * sum(dlogp)`` along ``axis``."""
        shifted = self.data - self.data.max(axis=axis, keepdims=True)  # (..., K)
        logp = shifted - np.log(np.exp(shifted).sum(axis=axis, keepdims=True))  # (..., K)
        out = Tensor(logp, _children=(self,), _op="log_softmax")

        def _backward() -> None:
            p = np.exp(logp)  # (..., K)
            self.grad += out.grad - p * out.grad.sum(axis=axis, keepdims=True)

        out._backward = _backward
        return out

    def softmax(self, axis: int = -1) -> "Tensor":
        """``p = softmax(z)``; ``dz = p * (dp - sum(dp * p))`` along ``axis``."""
        shifted = self.data - self.data.max(axis=axis, keepdims=True)  # (..., K)
        e = np.exp(shifted)  # (..., K)
        p = e / e.sum(axis=axis, keepdims=True)  # (..., K)
        out = Tensor(p, _children=(self,), _op="softmax")

        def _backward() -> None:
            self.grad += p * (out.grad - (out.grad * p).sum(axis=axis, keepdims=True))

        out._backward = _backward
        return out

    # ------------------------------------------------------------ shape ops
    def reshape(self, *shape: int) -> "Tensor":
        out = Tensor(self.data.reshape(*shape), _children=(self,), _op="reshape")  # shape

        def _backward() -> None:
            self.grad += out.grad.reshape(self.shape)  # gradient is just reshaped back

        out._backward = _backward
        return out

    def transpose(self, *axes: int) -> "Tensor":
        axes_t = tuple(axes) if axes else tuple(reversed(range(self.data.ndim)))
        out = Tensor(self.data.transpose(axes_t), _children=(self,), _op="transpose")  # permuted shape

        def _backward() -> None:
            inverse = np.argsort(axes_t)  # undo the permutation
            self.grad += out.grad.transpose(tuple(inverse))

        out._backward = _backward
        return out

    @property
    def T(self) -> "Tensor":
        return self.transpose()


def _as_tensor(x) -> Tensor:
    return x if isinstance(x, Tensor) else Tensor(x)


def _topological_order(root: Tensor) -> list[Tensor]:
    """Iterative DFS post-order: every node appears after all of its inputs."""
    order: list[Tensor] = []
    visited: set[int] = set()
    stack: list[tuple[Tensor, bool]] = [(root, False)]
    while stack:
        node, expanded = stack.pop()
        if expanded:
            order.append(node)
            continue
        if id(node) in visited:
            continue
        visited.add(id(node))
        stack.append((node, True))
        for child in node._prev:
            if id(child) not in visited:
                stack.append((child, False))
    return order


def cross_entropy(logits: Tensor, y: np.ndarray) -> Tensor:
    """Mean softmax cross-entropy built from engine ops. ``logits`` ``(N, K)``, ``y`` ``(N,)`` int."""
    n, k = logits.shape
    onehot = np.zeros((n, k))  # (N, K)
    onehot[np.arange(n), y] = 1.0
    logp = logits.log_softmax(axis=-1)  # (N, K)
    return -(logp * Tensor(onehot)).sum() * (1.0 / n)  # scalar

Retype by hand

Symbol File Target time Test
unbroadcast src/mlbook/nn/autograd.py 5 min pytest tests/test_nn_autograd.py -k unbroadcast -q
Tensor.__init__, Tensor.backward, _topological_order src/mlbook/nn/autograd.py 10 min pytest tests/test_nn_autograd.py -k "twice or diamond" -q
__add__, __mul__, __pow__, __matmul__ src/mlbook/nn/autograd.py 10 min pytest tests/test_nn_autograd.py -k "op_add or op_pow or op_matmul or batched" -q
sum, mean, exp, log, relu, sigmoid, tanh src/mlbook/nn/autograd.py 8 min pytest tests/test_nn_autograd.py -k "op_sum or op_exp or op_relu or op_sigmoid" -q
log_softmax, softmax, reshape, transpose src/mlbook/nn/autograd.py 8 min pytest tests/test_nn_autograd.py -k "op_softmax or op_log_softmax or op_reshape" -q
cross_entropy (from engine ops) src/mlbook/nn/autograd.py 3 min pytest tests/test_nn_autograd.py -k cross_entropy_helper -q

Fine to just read: _as_tensor, the __r*__ reflected operators, __repr__.

Full drill: tensor autograd engine with broadcasting, matmul and a 2-layer MLP verified against torch: 45 minutes. Grader: pytest tests/test_nn_autograd.py -q.

4. Systems view: cost, failure modes, trade-offs

4.1 How PyTorch's autograd differs

Aspect This engine PyTorch
Node representation Python closure capturing NumPy arrays C++ Node objects (AddBackward0, MmBackward0…) linked via grad_fn / next_functions; custom ops via torch.autograd.Function with forward(ctx, …)/backward(ctx, …) and ctx.save_for_backward
Graph lifetime Lives as long as the Python objects Dynamic: built during forward, freed during backward unless retain_graph=True; rebuilt every iteration, so control flow can change per step
What gets a gradient Every node accumulates .grad Only leaf tensors with requires_grad=True keep .grad; intermediates' grads are used and discarded (use .retain_grad() or a hook to see them)
Tracking control Always tracks requires_grad propagates through ops; torch.no_grad() / torch.inference_mode() disable recording; .detach() returns a view cut from the graph
In-place ops Not supported Allowed; each tensor has a version counter and autograd raises if a saved tensor was modified in place before backward
Accumulation += inside closures .grad accumulates across backward() calls until optimizer.zero_grad(); this is what makes gradient accumulation across microbatches free
Seeds Scalar root only y.backward(gradient=v) for non-scalar roots (a VJP with cotangent v)
Hooks None tensor.register_hook(fn) to inspect/modify a gradient in flight; module forward/backward hooks; used for gradient clipping per layer, debugging, DDP's bucketed all-reduce (Part XIV)
Execution Single-threaded Python Multithreaded C++ engine, one queue per device; streams; torch.autograd.grad for functional use; torch.func (vmap, grad, jvp) for JAX-style transforms
Memory Everything kept Saved tensors freed as soon as their node has run; activation checkpointing via torch.utils.checkpoint

The two behaviours that trip people up in practice are the leaf-only .grad (why h.grad is None for an intermediate h) and the "trying to backward through the graph a second time" error, which is the freed-graph rule: if you need two backward passes through shared work (e.g. GAN losses that share a generator forward), either retain_graph=True or recompute the forward.

4.2 How JAX differs

JAX has no .grad attribute and no graph objects you can inspect. jax.grad(f) returns a new function \(\nabla f\); calling it traces f with abstract values into a jaxpr, applies reverse mode symbolically, and returns the gradient as a value. Consequences:

  • f must be pure (no side effects, no mutation); parameters and optimiser state are explicit arguments and return values (pytrees), which is why JAX training loops look like params = update(params, grads).
  • jit(f) compiles the traced program with XLA; Python control flow that depends on values must use lax.cond/lax.scan because the trace happens once.
  • vmap(f) vectorises a per-example function into a batched one automatically, including through grad, per-example gradients are vmap(grad(f)), which PyTorch needed torch.func to get.
  • jvp (forward mode) and vjp (reverse mode) are both first-class, so Hessian-vector products are jvp(grad(f)). Source: the Autodiff Cookbook.

Trade-off in one line: PyTorch's dynamic, stateful graph is easier to debug and mutate; JAX's functional transforms compose (jit ∘ vmap ∘ grad) and compile to faster, more predictable programs on TPUs/GPUs, at the cost of purity constraints.

4.3 Cost and failure modes of the engine itself

  • Overhead. Each op allocates a node, a closure and NumPy temporaries; for a toy MLP that is fine, for anything real it is the reason frameworks fuse ops and run the engine in C++.
  • Memory. Closures keep every input alive until backward() runs, the activation-memory issue of chapter 2, with no freeing as backward proceeds. Adding del/None-ing after a node runs is the first optimisation a real engine makes.
  • Recursion. A recursive topological sort overflows on long chains; the engine is iterative for this reason.
  • Double backward(). Calling backward() twice on the same graph adds the gradients again (no freeing, no error). PyTorch frees the graph to make this loud.
  • Aliasing. Tensor(np_array) does not copy; mutating the array after building the graph corrupts the backward, the in-place hazard that PyTorch's version counter exists to catch.

When to use what.

Need Tool Why
Understand backprop, teach it, interview This engine / micrograd Every line is visible.
Research and production training PyTorch Dynamic graph, ecosystem, hooks, DDP/FSDP.
TPU-scale, functional style, per-example grads, higher-order derivatives JAX Composable transforms and XLA.
Custom op with a hand-written backward (fused kernel) torch.autograd.Function / jax.custom_vjp Register your VJP; the engine handles the rest.

5. In production

PyTorch: a dynamic C++ autograd engine behind an eager Python API

PyTorch's autograd records a graph of Function nodes as operations execute, then traverses it from roots to leaves applying the chain rule; the notes describe requires_grad propagation, no_grad/inference_mode, in-place correctness checks with version counters, and the rule that gradients accumulate on leaves. The engine runs in C++ with device-aware threading so that Python overhead is paid only at graph-construction time. Source: Autograd mechanics; Overview of the PyTorch autograd engine.

JAX: composable function transformations on pure programs

JAX exposes grad, jit, vmap and jvp/vjp as transformations of pure Python functions, traced to XLA; the Autodiff Cookbook demonstrates higher-order derivatives (grad(grad(f))), Hessian-vector products via forward-over-reverse, and per-example gradients via vmap(grad(f)). It is the substrate of Google's large-model training stacks (PaLM was trained on TPU v4 with Pathways; see Part VI). Sources: docs.jax.dev autodiff cookbook; github.com/jax-ml/jax.

Meta: DDP hooks into autograd to overlap communication with backward

PyTorch's DistributedDataParallel registers autograd hooks on parameters so that as soon as a bucket of gradients is ready during backward, its all-reduce launches on a separate stream while the rest of backward continues, the gradient-computation/communication overlap that makes data parallelism scale. This is only possible because the engine exposes per-tensor gradient hooks and executes nodes in a known order. See Part XIV, distributed training for the full mechanism and the SyncBatchNorm interaction from chapter 5.

6. Interview questions and strong answers

Walk me through what happens when I call loss.backward() in PyTorch.

During the forward pass each op that touches a requires_grad tensor created a grad_fn node with edges to its inputs' nodes and saved whatever its backward needs (via ctx.save_for_backward or equivalently in C++). backward() seeds the root with a cotangent of 1, then the engine executes nodes in dependency order, a node runs once all its consumers have delivered their contributions, each computing a VJP and accumulating into the next nodes' buffers. When a leaf is reached its .grad is accumulated (+=). Saved tensors are released as nodes finish unless retain_graph=True. Staff follow-up: what does DDP add? Hooks on parameter gradients that fire when a bucket is ready, launching all-reduce asynchronously so communication overlaps the remaining backward.

Why does x.grad come back None for an intermediate tensor, and how do you get it?

By default only leaf tensors with requires_grad=True retain gradients; for intermediates the gradient is used to propagate further and then dropped to save memory. Call x.retain_grad() before backward, or register a hook (x.register_hook(lambda g: ...)) to observe or modify it in flight. In my engine every node keeps .grad, which is simpler and wastes memory, the trade PyTorch makes the other way.

Implement unbroadcast. Why is it needed?

Broadcasting copies a value to many positions in forward; by the chain rule the gradient of the original is the sum over those positions. Algorithm: while the gradient has more dims than the original shape, sum over axis 0 (the prepended axes); then for each axis where the original had size 1 and the gradient does not, sum with keepdims=True. Without it, x + b with b of shape (d,) would try to add an (N, d) gradient into a (d,) buffer, a shape error in the best case. Staff follow-up: where else does the same rule appear? The bias gradient, a weight shared across a batched matmul, embedding rows used by many tokens (scatter-add), and weight tying in language models.

What breaks if you forget the topological sort and just run closures in reverse creation order?

Nothing, if creation order was topological, which eager execution guarantees, since an op cannot run before its inputs exist. It breaks when nodes are created but wired out of order (graph rewriting, lazy construction), or when you want to start backward from a node that is not the last created. The sort also lets you skip subgraphs that do not lead to the root, and it is what guarantees each node's gradient is complete before its closure reads it.

PyTorch vs JAX for a new large training stack: how do you choose?

PyTorch: dynamic graphs, in-place ops, hooks, debuggability, the widest ecosystem (FSDP, torch.compile, Triton kernels); the default for GPU shops. JAX: pure functions with jit/vmap/grad/pjit that compose and compile through XLA, excellent on TPUs, natural for SPMD sharding and per-example gradients; the price is functional discipline (explicit state, no Python control flow on values inside jit). I would choose on hardware and team: TPU pods and a research team fluent in functional style → JAX; GPU clusters and a need for the broadest library support → PyTorch. Staff follow-up: what is torch.compile and torch.func doing? Bringing tracing/compilation and function transforms into PyTorch, narrowing the gap from the other side.

How would you add a fused custom op (say, fused attention) so autograd still works?

Subclass torch.autograd.Function: forward(ctx, q, k, v) calls the kernel and ctx.save_for_backward(...) the minimal tensors (logsumexp, output), and backward(ctx, dout) calls the backward kernel and returns one gradient per input (or None). The engine treats it as a single node. In JAX, jax.custom_vjp plays the same role. The correctness test is the same as for any layer: float64 finite differences and comparison against the unfused reference.

7. Exercises

★ Trace by hand. For \(L = \sum\big((a\odot b) + a\big)\) with \(a, b \in \R^{2}\), draw the graph, list a topological order, and compute \(\bar a, \bar b\).

Solution

Nodes: m = a*b, s = m + a, L = sum(s). Order: a, b, m, s, L. Backward: \(\bar s = \mathbf 1\); from s: \(\bar m = \mathbf 1\), \(\bar a \mathrel{+}= \mathbf 1\); from m: \(\bar a \mathrel{+}= b\), \(\bar b \mathrel{+}= a\). So \(\bar a = b + \mathbf 1\), \(\bar b = a\).

★ mean from sum. Show that mean(axis) = sum(axis) * (1/count) produces the correct VJP \(\bar a = \bar y / \mathrm{count}\) broadcast over the reduced axis.

Solution

sum's VJP broadcasts \(\bar y\) to a.shape; the scalar multiply's VJP scales by \(1/\mathrm{count}\). Composition: each element of \(a\) receives \(\bar y_{\text{its row}}/\mathrm{count}\), which is \(\partial(\text{mean})/\partial a_i = 1/\mathrm{count}\) times upstream. No new primitive needed.

★★ Add max (coding). Implement Tensor.max(axis) whose backward routes the gradient to the arg-max position (ties: pick the first). Verify against torch.max(..., dim) on a random (3, 5) input.

Solution

import numpy as np, torch
from mlbook.nn.autograd import Tensor

def tmax(self, axis):
    out = Tensor(self.data.max(axis=axis, keepdims=True), _children=(self,), _op="max")   # (..., 1)
    def _backward():
        mask = (self.data == out.data)                               # same shape as self
        first = np.cumsum(mask, axis=axis) == 1                      # keep the first tie only
        self.grad += (mask & first) * out.grad
    out._backward = _backward
    return out
Tensor.max = tmax

a = np.random.randn(3, 5)
t = Tensor(a); (t.max(axis=1) * Tensor(np.arange(3.0).reshape(3, 1))).sum().backward()
tt = torch.tensor(a, requires_grad=True)
(tt.max(dim=1).values * torch.arange(3.0, dtype=torch.float64)).sum().backward()
np.testing.assert_allclose(t.grad, tt.grad.numpy())
max is piecewise-identity: the gradient flows to the winning element only. Max pooling in CNNs is this op applied over windows (Part IV).

★★ Free memory as you go (coding). Modify backward() so that after a node's closure runs, its saved data is released (node._backward = None, and for non-leaf nodes node.data = None if nothing else needs it). Measure peak memory (tracemalloc) before and after on a 200-layer chain of (512, 512) matmuls.

Solution

In the loop: node._backward(); node._backward = None drops the closure and with it the references to the inputs it captured, so intermediate arrays become collectable as soon as their consumer has run. You should see peak memory fall from "all \(L\) activations" to "a handful", because reverse order frees the deepest layer first. This is exactly PyTorch's "graph is freed during backward" behaviour and the reason retain_graph exists.

★★★ Forward mode. Add a jvp to the engine: each Tensor carries an optional tangent of the same shape, and each op propagates tangents alongside data (e.g. mul: t_out = t_a * b + a * t_b). Use it to compute a Hessian-vector product of \(L(w) = \sum \mathrm{relu}(Xw)^2\) by applying forward mode to the gradient computed by reverse mode, and compare with a finite difference of the gradient.

Solution sketch

Forward mode needs no graph: propagate (data, tangent) pairs eagerly with the Jacobian-vector rule per op (add: sum tangents; matmul: t_A @ B + A @ t_B; relu: t * mask; sum: sum tangents). For \(Hv\): define \(g(w) = \nabla L(w)\) by the reverse engine, then compute \(\partial g/\partial w\cdot v\) by running the reverse pass with tangent-carrying tensors (forward-over-reverse). Check: \(Hv \approx (g(w + \epsilon v) - g(w - \epsilon v))/2\epsilon\). This is what jax.jvp(jax.grad(f), (w,), (v,)) does in one line, and it is the basis of curvature-aware optimisers and of the μP-style analyses in chapter 4.

References
